Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed thickness is 0.080". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

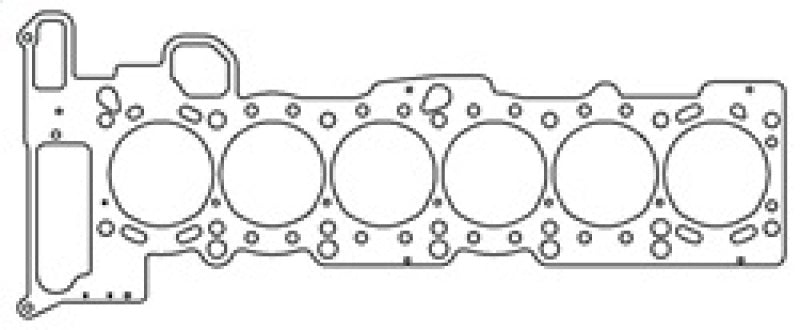

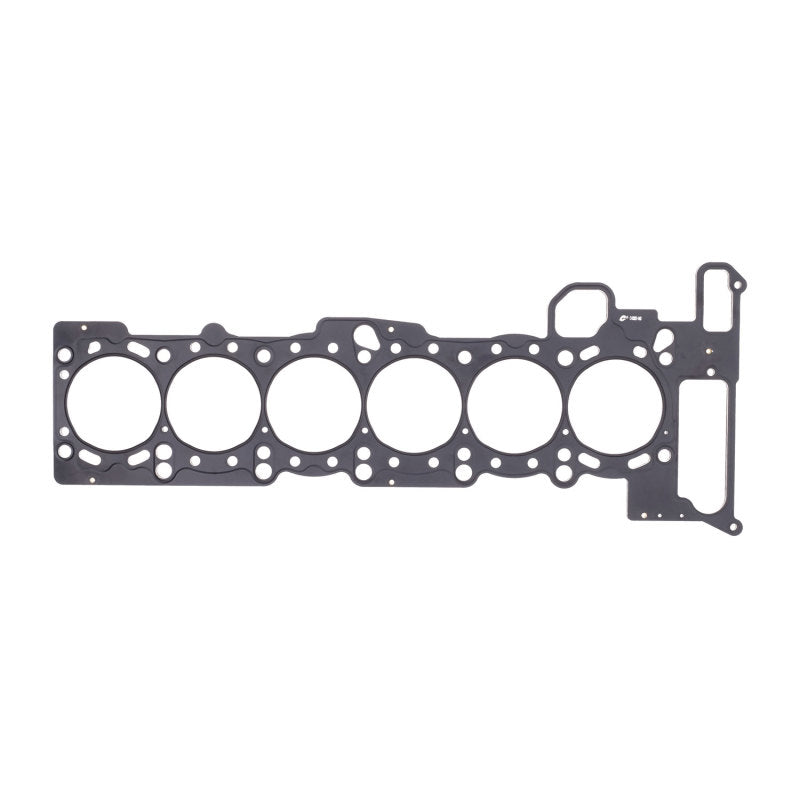

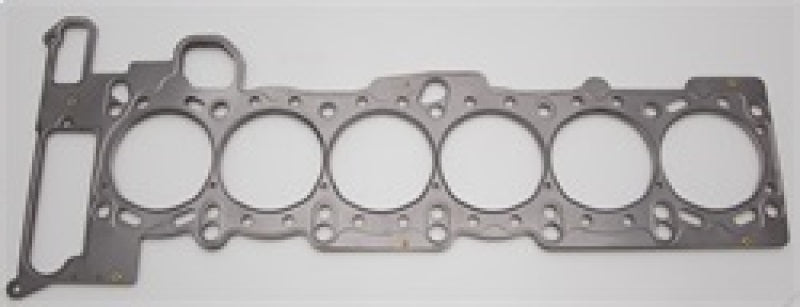

BMW M54B25, M54tuB25 2.5L / M54tuB28 2.8L / M54B30 3.0L Inline 6 85mm MLS Head Gasket. Comprised of mulitple embossed layers of stainless steel with the outer layers utilizing a viton rubber coating. Compressed thickness is .080". Each.
BMW M54B25/TUB25/B28/B30
Fits
BMW 325Ci Base 2001
BMW 325Ci Base 2002
BMW 325Ci Base 2003
BMW 325Ci Base 2004
BMW 325Ci Base 2005
BMW 325Ci Base 2006
BMW 325i Base 2001
BMW 325i Base 2002
BMW 325i Base 2003
BMW 325i Base 2004
BMW 325i Base 2005
BMW 325xi Base 2001
BMW 325xi Base 2002
BMW 325xi Base 2003
BMW 325xi Base 2004
BMW 325xi Base 2005
BMW 330Ci Base 2001
BMW 330Ci Base 2002
BMW 330Ci Base 2003
BMW 330Ci Base 2004
BMW 330Ci Base 2005
BMW 330Ci Base 2006
BMW 330i Base 2001
BMW 330i Base 2002
BMW 330i Base 2003
BMW 330i Base 2004
BMW 330i Base 2005
BMW 330xi Base 2001
BMW 330xi Base 2002
BMW 330xi Base 2003
BMW 330xi Base 2004
BMW 330xi Base 2005
BMW 525i Base 2001
BMW 525i Base 2002
BMW 525i Base 2003
BMW 525i Base 2004
BMW 525i Base 2005
BMW 530i Base 2001
BMW 530i Base 2002
BMW 530i Base 2003
BMW 530i Base 2004
BMW 530i Base 2005
BMW X3 2.5i 2004
BMW X3 2.5i 2005
BMW X3 3.0i 2004
BMW X3 3.0i 2005
BMW X3 3.0i 2006
BMW X5 3.0i 2001
BMW X5 3.0i 2002
BMW X5 3.0i 2003
BMW X5 3.0i 2004
BMW X5 3.0i 2005
BMW X5 3.0i 2006
BMW Z3 Coupe 2001
BMW Z3 Coupe 2002
BMW Z3 Roadster 2000
BMW Z3 Roadster 2001
BMW Z3 Roadster 2002
BMW Z4 2.5i 2003
BMW Z4 2.5i 2004
BMW Z4 2.5i 2005
BMW Z4 3.0i 2003
BMW Z4 3.0i 2004
BMW Z4 3.0i 2005
